Sand Classifiers and Quality Control: Ensuring Consistent Sand Production
As demands for high-quality sand in construction and industrial applications continue to grow, consistent sand production is critical for meeting strict industry standards and project requirements. Sand classifiers such as Classifying Tanks, Fine Material Washers and Hydrocyclone/Dewatering Screen Plants like the Falcon Sand Plant, are essential pieces of equipment for achieving uniformity as they play an important role in the classification process.

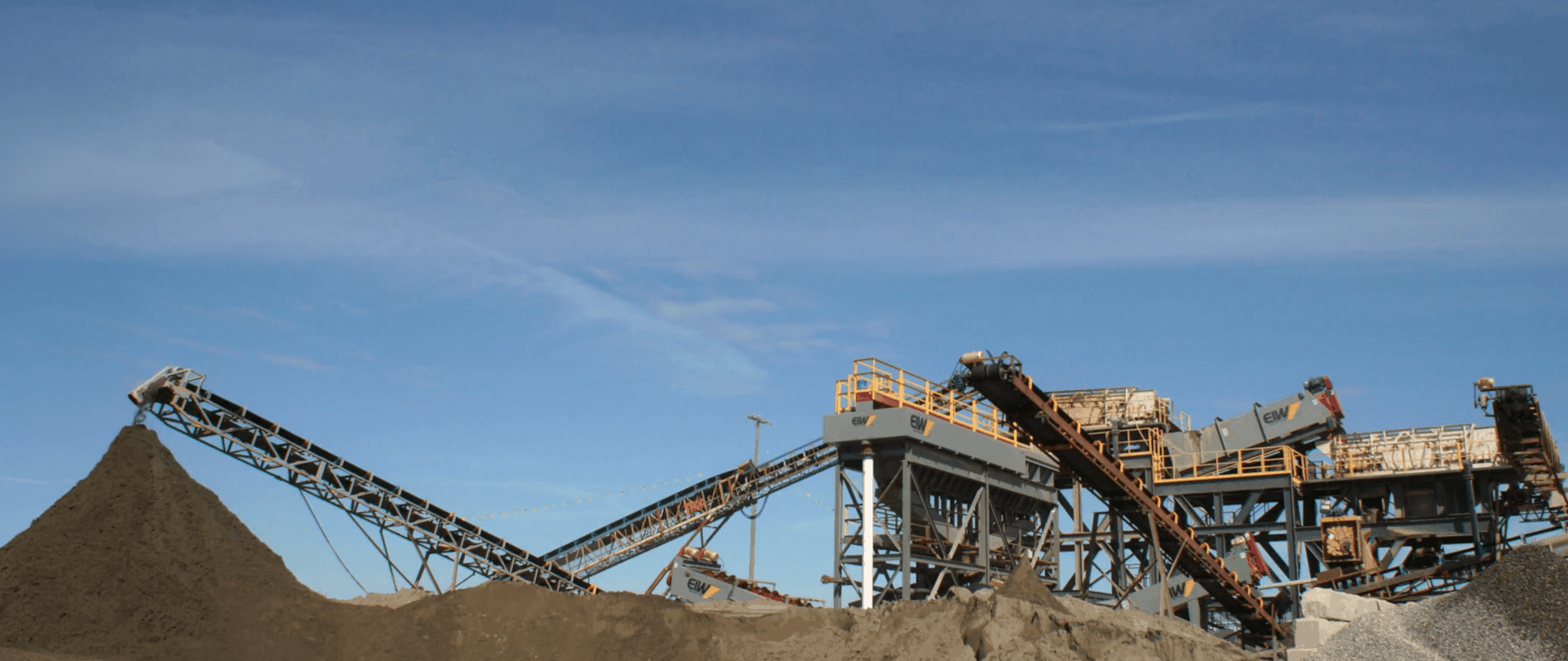

The Role of Sand Classifiers in Sand Production
The term “sand classifiers” can be used to generically describe equipment designed to separate sand particles based on size and density. Equipment that falls under the label of sand classifiers are used to produce many construction specification sand products, such as concrete, asphalt, mason/mortar, and industrial-grade sands.
Types of Sand Classifiers
Classifying Tanks

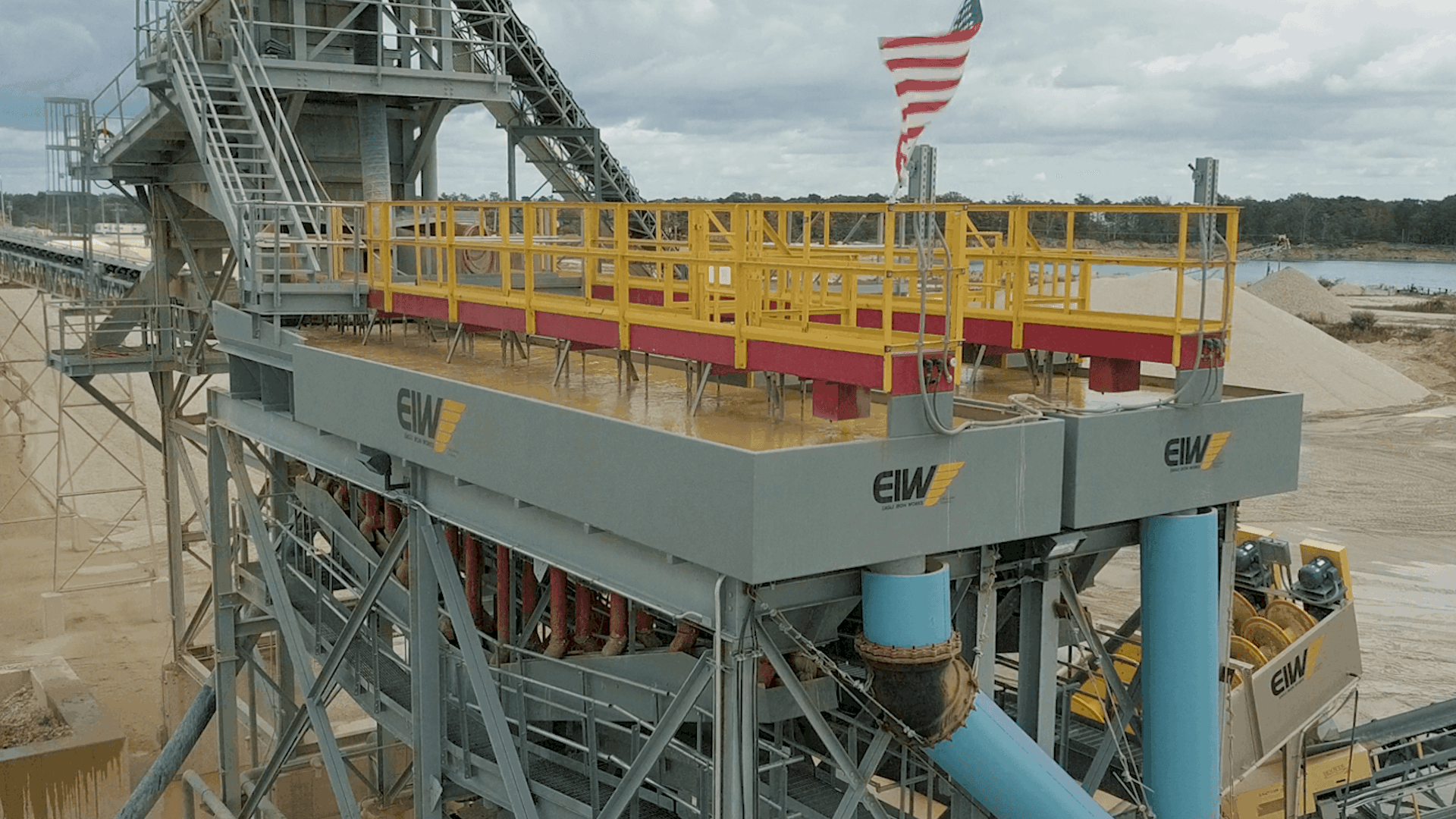

Classifying Tanks are commonly used for washing and classifying sand. In addition to removing silts to produce an in-spec product, Classifying Tanks are also used for scalping off excess water from the feed in suction dredging operations and for making multiple products from a single feed. These tanks process high tonnages to economically and efficiently keep construction-grade sand products in specification.
Classifying Tanks can efficiently remove excess water from feed material in applications like dredging, pumping and high-silt processing. They regulate feed fluctuations and eliminate excess sand particles for a consistent, in-spec product. Designed for both slurry and dry feeds, these low-maintenance units handle gradation variations while minimizing waste. With a large settling area, they retain fine mesh particles to meet specifications like ASTM C-33 for concrete sand and produce secondary products such as masonry, mortar, asphalt, golf course and specialty sands. Classifying Tanks are offered in stationary, semi-portable and portable configurations, allowing for high plant customization and ease of maintenance.
Classifying Tanks are designed with six to 11 valve stations, depending on the tank's size. Each station includes a paddle sensing device and a set of valves operated by hydraulic cylinders housed within a bridge spanning the length of the tank. When a sand feed enters the tank, the heavier, larger particles settle in the first stations, while smaller particles settle in the later stations. As sand builds up in a station, it eventually stalls the paddle sensor. This triggers a PLC controller to open the station's valves based on the signal received from the stall motor. The discharged sand flows into two, three or four separate collecting-blending flumes located beneath the tank. These flumes recombine the fine and coarse sand fractions as directed by the PLC control system from each valve, channeling them toward the dewatering equipment positioned below the Classifying Tank.
Fine Material Washers

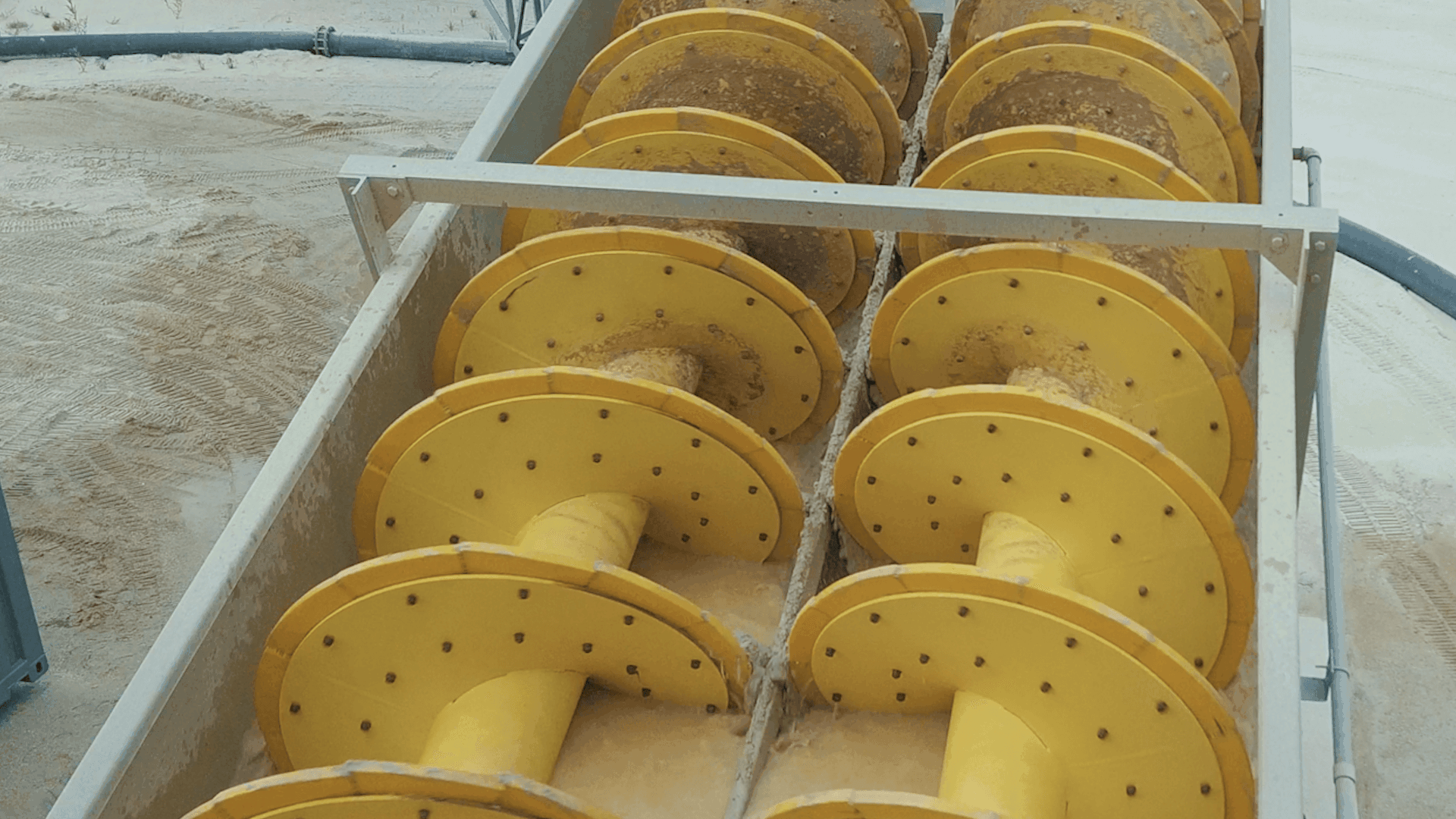

Fine Material Washers are efficient, low-horsepower systems designed for washing, classifying and dewatering sand. They come in single or double screw configurations, chosen based on the required sand solids capacity and water flow volume. Double Fine Material Washers can be manufactured in a size of 72”x38” with capacities up to 950 tph.
Fine Material Washers dewater materials by conveying them up an inclined tub, allowing free water to drain away. A close-clearance curved plate on one side of the conveyor shaft and a drainage trough on the other ensure effective water removal as the spiraled shaft moves the material upward. This method reduces water content, producing a drier and more saleable final product.
Classification is achieved with a Fine Material Washer by adjusting the water volume over the weirs in the washer box. Setting the three weirs level provides low overflow velocity for maximum solids retention, while offsetting and lowering the back weir increases overflow velocity to remove excess fines.
Falcon Sand Plant

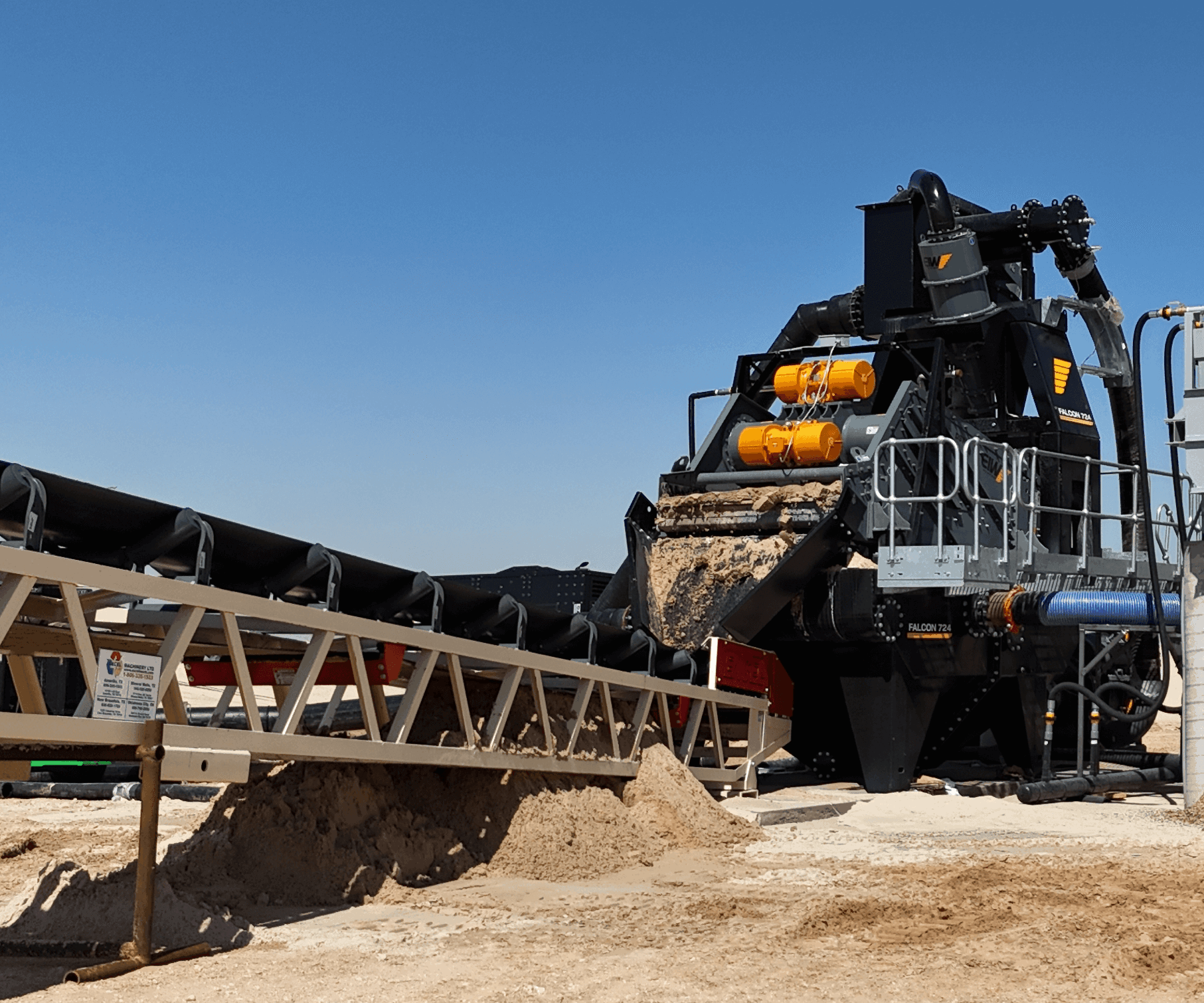

Sand plants such as EIW’s Falcon Sand Plant consist of a sump, pump, hydrocylones and dewatering screen on a modular chassis. The heavy-duty design and ease of maintenance make wash plants ideal for operations looking to achieve high sand recovery.
The washing process begins when the material enters the sump where it is pumped to two hydrocyclones. Here the sand is classified to meet the required specifications. The in-spec sand is discharged from the bottom of the cyclones onto a dewatering screen, while fines and process water exit through the overflow at the top. The dewatering screen removes excess moisture, delivering a drip-free product that is easy to convey, stack, and sell immediately. Any water and fine material removed by the screen are recirculated within the system to maintain consistent product quality.
Choosing the Correct Sand Classifier for Your Needs
Choosing the right sand classifier for your operation is key to successfully producing spec sand products. There are several factors to consider before making this choice, such as production capacity requirements, the material being processed, sand feed gradation, water volume of the sand slurry feed, product specifications and integration with existing systems.
If your operation requires processing large quantities of sand with multiple product specifications (e.g., concrete sand, masonry sand, and golf course sand), a Classifying Tank is the best choice. Classifying Tanks efficiently separate and blend different sand fractions to create consistent, in-spec products. They are especially useful in operations with fluctuating feed material composition, as the automated control system adjusts in real time to maintain product quality.
A fine material washer may be the best option for your operation if you need to remove excessive fine material, such as silt and clay, while also achieving a lower moisture content for faster drying and handling. These units are commonly used in aggregate wash plants where a single, consistent sand product is required, such as in concrete production. The adjustable weirs allow operators to control the overflow and fine retention, making it suitable for applications where maintaining fine sand content is critical. Adding a Dewatering Screen after a Fine Material Washer will produce a drip-free stackable product ready for immediate sale.
A sand plant such as the Falcon that uses hydrocyclones and a dewatering screen is a good option for operations handling highly silty or dirty material that requires efficient fines removal and dewatering. The hydrocyclones provide precise classification by separating fine particles from in-spec sand, while the integrated dewatering screen ensures a drip-free final product. This setup is ideal for operations where immediate stockpiling and transportability are key factors, such as frac sand production or dredging applications where water management is a priority.
Quality Control in Sand Classification
Ensuring high-quality sand production requires careful monitoring of key quality parameters. One of the most critical factors is particle size distribution, which determines the consistency and usability of the final product. Effective removal of impurities, such as clay and silt, is essential for producing clean, in-spec sand that meets industry standards. Additionally, controlling moisture content is key to preventing excess water retention, which can impact material handling, storage and overall efficiency in downstream processes. By maintaining these parameters, producers can achieve quality sand products that reduce waste and improve overall operational efficiency.
Sand classifiers play an important role in ensuring efficient separation of coarse and fine particles to improve product uniformity. With the integration of technology, producers are able to use automation for real-time monitoring and adjustments. Each type of classifier has specific ways to optimize the removal of impurities based on the material being processed and the desired final product.
With properly sized Classifying Tanks, adjusting the weirs and rising current valve settings allow for better particle separation and fines removal. Raising the side weirs and lowering the back weir increases overflow velocity, allowing more ultra-fines (such as clay and silt) to be carried out with the overflow water. Fine-tuning the valve discharge percentages at different stations ensures that coarser sand is kept separated from unwanted fines if classified efficiently. If excessive fines cannot be removed, adding a pre-wash system or integrating hydrocyclones upstream can improve the initial material cleanliness.
To remove clays and silts from sand with a Fine Material Washer, sizing the unit is key in determining the correct volume of water. Setting the side and back weirs at different levels increases the velocity of overflow water, enhancing the removal of impurities, if required. Additionally, increasing freshwater introduction at the washer’s feed end can help to dilute material and remove more fine material. Adding additional water to the washer’s rising current manifold can help remove more residual silt or clay clinging to sand particles.

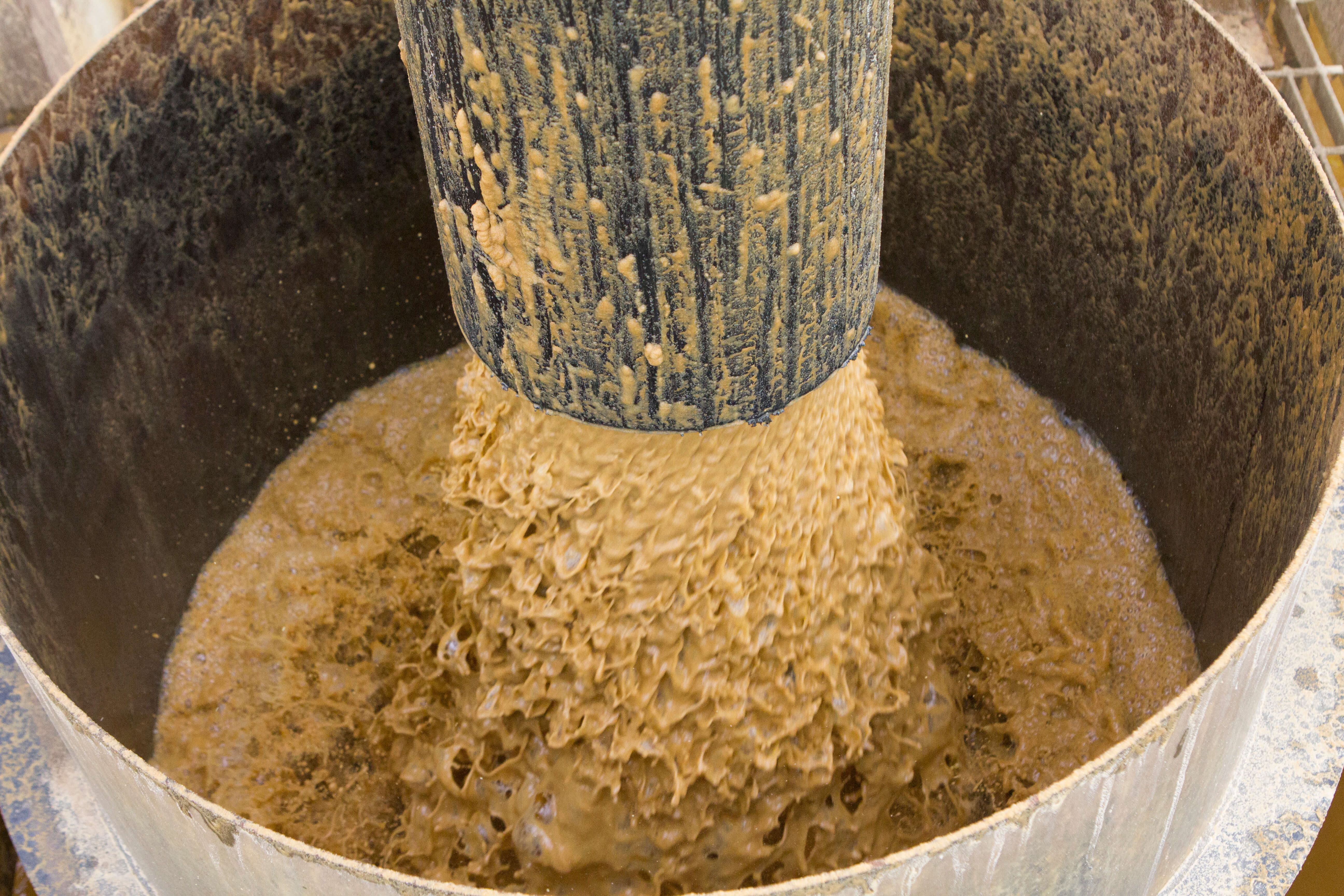

Depending on sand feed gradation, Hydrocyclones are used to optimize production in a sand plant. Using smaller cyclone apexes increases the velocity inside the hydrocyclone, leading to finer cut points and better separation of ultra-fines and impurities. Adjusting inlet pressure by increasing the pump speed can also help to improve the separation of fine contaminants from the sand. Finally, installing an additional desliming stage with multiple hydrocyclones or a secondary wash screen can further remove any undesirable materials.
Challenges in Sand Classification
One of the biggest operational challenges in aggregate processing is handling fluctuating feed conditions. Variations in raw materials can impact classification efficiency, requiring operators to constantly adjust equipment settings. Additionally, excessive fines or oversized particles can reduce product quality and increase waste, making precise classification essential for maintaining product consistency.
Innovations in aggregate processing technology have provided solutions to these challenges. Sand classifiers equipped with optimized control systems help reduce waste while maintaining product quality. These advanced systems ensure efficient separation of fines, improving both operational efficiency and environmental compliance.
Sand Classifiers play a vital role in ensuring consistent sand production and maintaining high-quality standards. When considering adding a sand classifier, be sure to consider important factors such as capacity and product specifications or consult with industry experts to optimize your operation for consistent and high-quality output.
