Blade Mills can be used in a variety of applications and are designed to help producers begin liberating light, loamy clay or dirt from either coarse rock and/or sand before further processing.
Blade Mills are very similar in appearance to Coarse Material Washers but function much differently. The major difference is that any material and water that enters the Blade Mill must exit through the discharge opening located at the bottom of the washer tub opposite the feed end, as these units are installed at a shallow slope position of 0° to 5°. There is no overflow in this type of unit. Using a combination of paddles and flights arranged in alternating format the entire length of the shafts, they begin to scour, abrade and break down deleterious material. The shafts can have different configurations but mainly the idea is to have alternating flights and paddles. Rock, sand, or a combination of rock and sand depending on the process plant location typically discharges directly onto a washing/sizing vibrating screen or dewatering equipment.
How Blade Mills Work

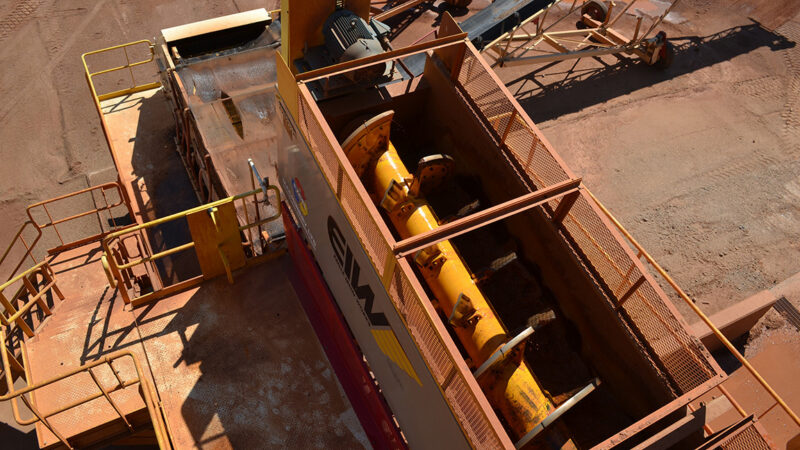

While very similar in appearance to Coarse Material Washers, EIW Blade Mills function quite differently. The major difference between the two is that any material and water that enters the Blade Mill must exit through the discharge opening located at the washer box opposite the feed end. As a Blade Mill is installed at a 0° to 5° slope, all solids material and water discharges at the opposite end of the incoming feed to downstream processing equipment.’ Blade Mills use an alternating combination of paddles and flights the entire length of the shaft to scour, abrade and break down deleterious material. The shafts are capable of having various configurations. Blade Mills should be installed on a slope of 0 to 5 degrees. Due to the lower machine operating slope, Blade Mills have higher capacities compared to Coarse Material Washers of the same size
- Pre-Scrubbing for raw feeds that contain high silts
- Normally used to scrub 1-1/2” minus
- Increases sand equivalency levels
- Increases screening efficiency
- Capacities 35% to 50% greater than standard CMWs
- Water is added through the rising current manifold and discharged along with product

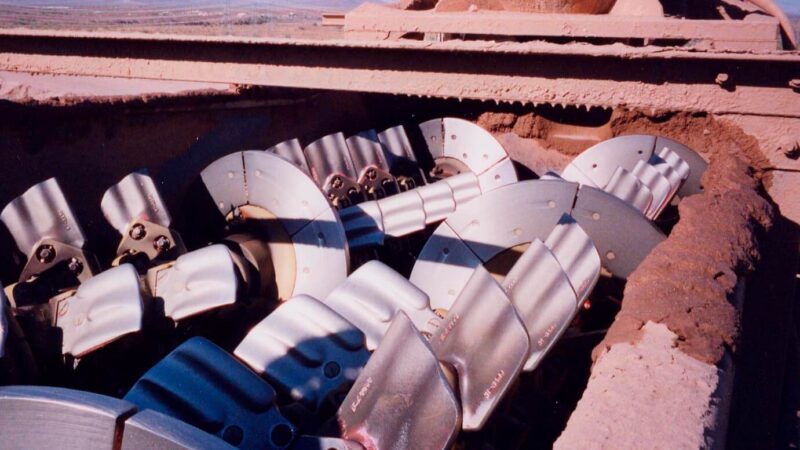

- Equipped with full-depth wear shoes and reversible paddles made from abrasion-resistant White Iron
- Reverse paddles to increase retention time
Download the Blade Mill Brochure
To learn more about Eagle Iron Works' Blade Mills, including sizes and capacities, download the brochure.
