Attrition Scrubbers

Eagle Iron Works’ Attrition Scrubbers are designed for high-intensity, grain-on-grain scrubbing of minus 5mm x 0 solids.

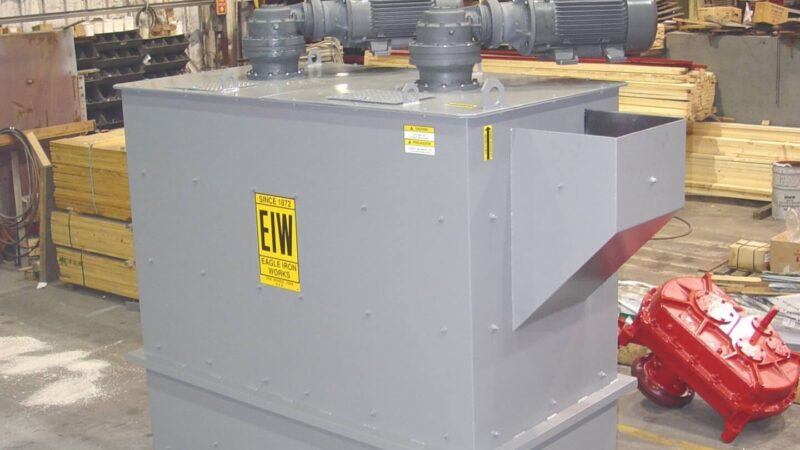

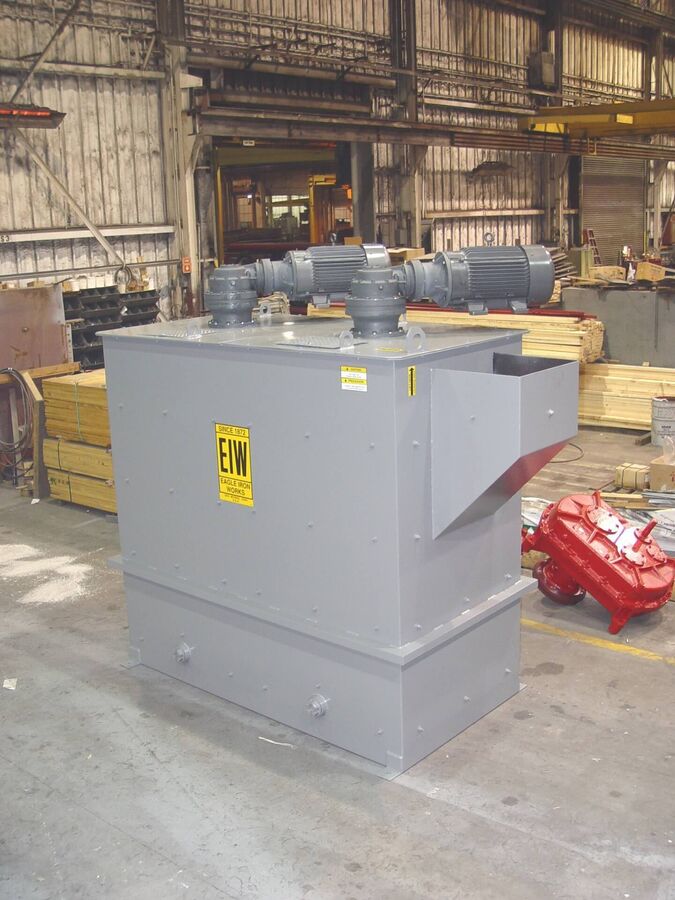

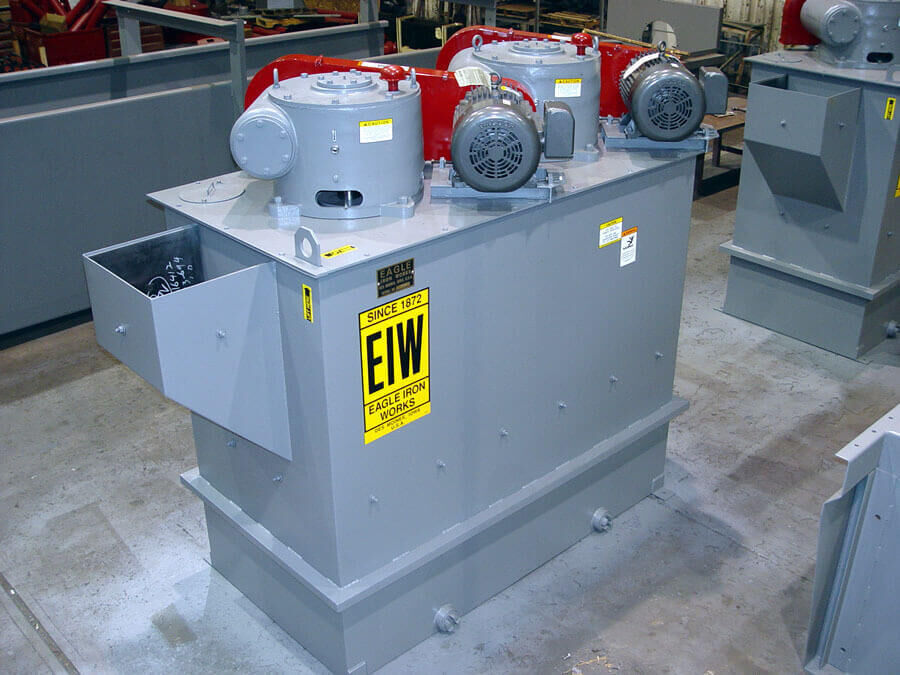

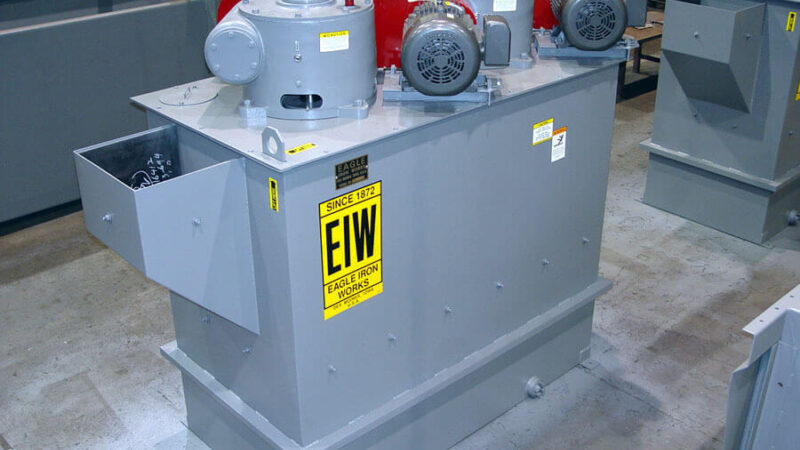

Eagle Iron Works Attrition Scrubbers are designed for long service life and ease of maintenance. Parts that experience the most wear and abrasion are made from the most wear-resistant material available. The tank itself is fabricated with heavy US gauge steel. Clean-out pipes are located on the bottom of the tank for easy discharge. Simplifying maintenance, the drive assembly, cover, shaft and propellers may be removed from the tank as a single unit.

How Attrition Scrubbers Work

As sand slurry enters the feed cell of the Attrition Scrubbers, turbine blade propellers force the material grains to constantly abrade each other while moving the material from cell to cell within the machine, resulting in a clean, usable material.

Each rubber-lined shaft assembly consists of two turbine blade propellers set at opposite pitch and different degrees of pitch, giving feed material its direction of movement through the machine. A constant feed of material to the Attrition Scrubbers is necessary for the most efficient attrition possible; the rate of discharge from the Attrition Scrubbers is directly dependent upon the feed to the machine.

For the most efficient abrading action, the feed slurry entering the machine should be maintained at 65% to 85% solids. A Fine Material Washer is recommended to follow the discharge of the Attrition Scrubbers for de-sliming purposes.

Product Features

Designed & Built At Eagle Facilities

Heavy-Duty Design

Five-Bladed Propellers

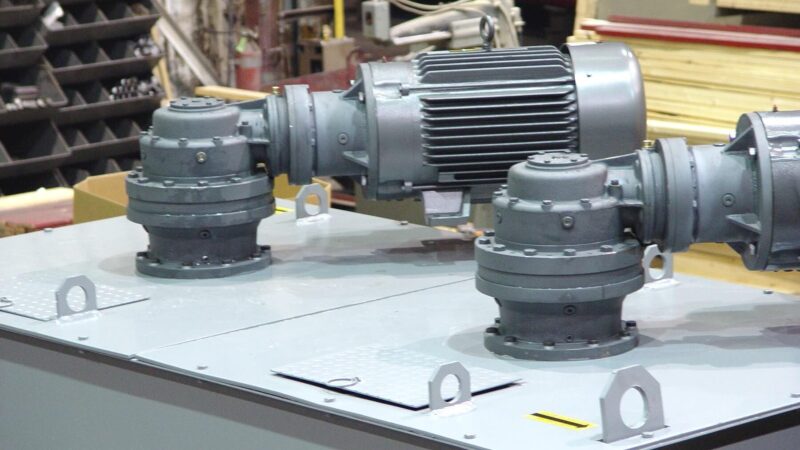

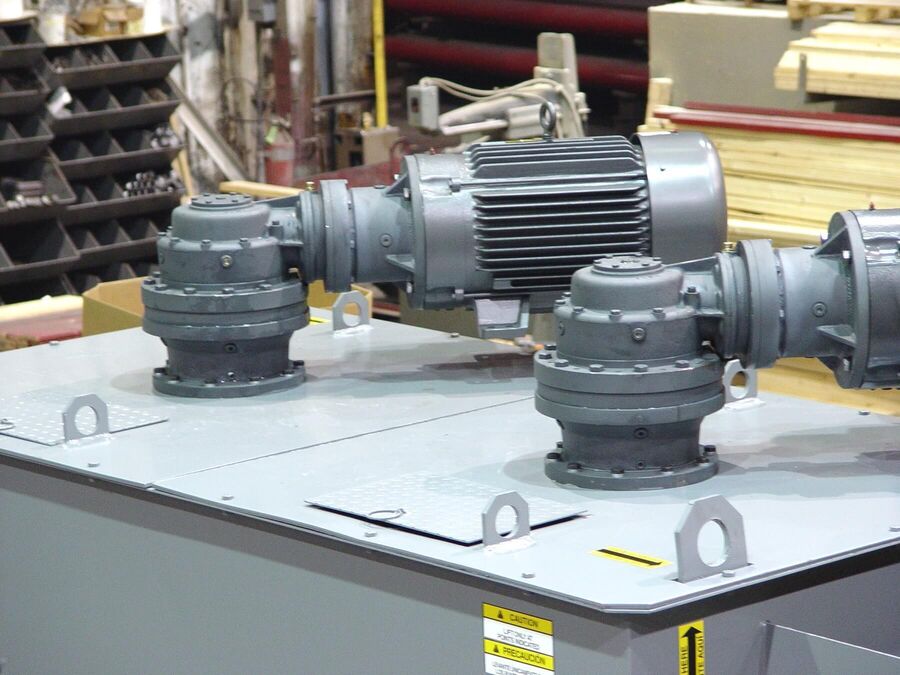

Direct Drive Reducer With Oil Bath Lubrication

All Wear Surfaces Rubber Lined

Download the Attrition Scrubbers Brochure

To learn more about Eagle Iron Works' Attrition Scrubbers, including sizes and capacities, download the brochure.
